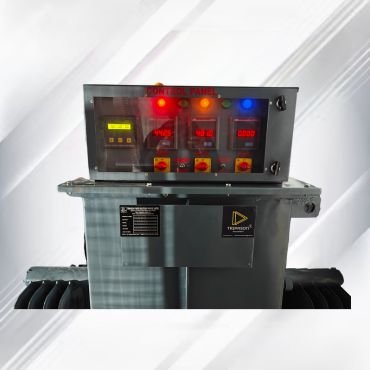

Linear TYPE SERVO VOLTAGE STABILIZER
A linear-type servo voltage stabilizer is a type of voltage regulation device used to maintain a stable output voltage for electrical equipment. It operates on the principle of servo motor technology combined with a linear mechanism.
Here's how it works
| Servo Motor | The stabilizer is equipped with a servo motor that continuously monitors the input voltage. |
| linear Mechanism | Inside the stabilizer, there's a linear mechanism connected to the servo motor. This linear mechanism adjusts the position of the voltage regulator's carbon linear based on the input voltage level. |
| Voltage Regulation | As the input voltage fluctuates, the servo motor and linear mechanism work together to move the carbon linear along the voltage regulator's winding, adjusting the output voltage to maintain it within a predefined range. |
| Accuracy | They provide protection against unbalanced voltage, high voltage surges, and low voltage sags, ensuring a stable and consistent voltage supply to connected equipment. |
| Overall, linear-type servo voltage stabilizers are widely used in industries where stable voltage supply is critical for the efficient and safe operation of electrical equipment. | |
Specifications
| Capacity | 3 KVA to 5000 KVA |
| Input Voltage Range | 160V - 480V (3-Phase) / 90V - 480V (Single Phase) (Customizable upon request) |
| Output Voltage Range | 380V ± 1% (3-Phase) / 230V ± 1% (Single Phase) |
| Frequency | 50Hz / 60Hz (Auto-sensing) |
| Efficiency | ≥ 98% |
| Correction Speed | ≤ 20 milliseconds (Response time from input voltage change to stabilized output) |
| Ambient Temperature | 0°C to 50°C |
| Cooling Method | Air-cooled / Oil-cooled (Depending on model) |
| Insulation | Class 'F' |
| Protection | Over Voltage Protection Under Voltage Protection Overload Protection Short Circuit Protection Surge Protection |
| Display | Digital LED display for Input Voltage, Output Voltage, Current, Frequency, and Status Indicators |
| Enclosure | Robust and corrosion-resistant metal enclosure with powder-coated finish |
| Copper use | “Sterlite” Make-99.9% Pure Electrolytic Grade |
| Certifications | ISO 9001:2015 |
| Warranty | Standard 1-year warranty (Extended warranties available) |
